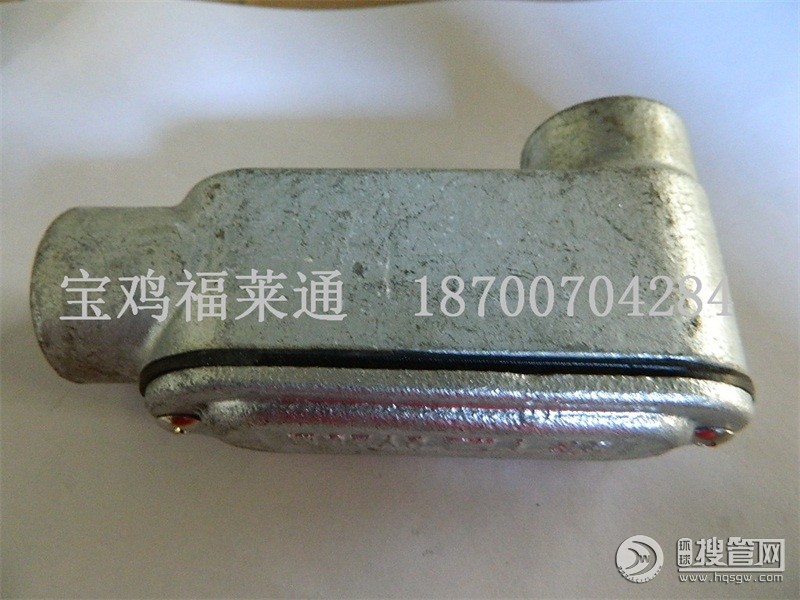

拐角盒 LB型 镀锌可锻铸铁 增安型防爆 G15 NPT x 2
产品说明
Conduit Outlet Body (Condulet) is used in electrical raceways to connect the conduits and provide access to conductors for future maintenance. Casted in high grade malleable iron, Conduit Outlet Body has high strength compared to other base metals. Available in LB, LL, LR, TC, TB, this Conduit Outlet Body comes furnished with gasket and steel cover. Conduit Outlet Body is available in sizes from 1/2 inches upto 6 inches.
Material :
•Malleable Iron Finish
•Hot dipped Galvanized
产品名称：出口可锻铸铁穿线盒/防爆穿线盒
Productname:Export type malleable iron threading box
产品型号：直通（C）、左弯（LL）、右弯（LR）、后弯（LB）、三通（T）、后三通（TB）
Theproductmodel：Through（C）、Left(LL)、Right(LR)、after the bend(LB)、Three(T)、after the three bend(TB).
材质：穿线盒体和盒盖为热浸锌可锻铸铁；螺丝材质为不锈钢304；垫圈材质为橡胶。
Texture of material:The body and a box cover for malleable iron;screws made of 304 staintess steel;the gasket material for rubber.
螺纹形式：NPT螺纹、G螺纹。
The thread form：NPT thread,G thread.
表面处理：采用热浸镀锌工艺，镀层厚度≥79μm。
Surface treatment：The hot-dip galvanizing process,zinc layer thickness≥79μm.
防护等级：IP67。
Protection class：IP67.
主体数据不含盖子：
The main data without cover：
|
型号 |
|
1/2” |
3/4” |
1” |
1-1/2” |
2” |
|
T |
长：L |
132 |
149 |
178 |
246 |
275 |
|
宽：B |
55 |
40 |
69 |
95 |
84 |
|
|
高：H |
39 |
57.5 |
46 |
67 |
114 |
|
|
TB |
长：L |
132 |
149 |
178 |
242 |
275 |
|
宽：B |
36 |
39 |
46 |
64 |
114 |
|
|
高：H |
39 |
59 |
49 |
97 |
84 |
|
|
LB |
长：L |
132 |
130.5 |
155 |
210 |
276 |
|
宽：B |
36 |
39 |
46 |
64 |
84 |
|
|
高：H |
58 |
60.5 |
74 |
98.5 |
114 |
|
|
LR |
长：L |
132 |
130.5 |
155 |
215 |
275.6 |
|
宽：B |
38 |
57.5 |
69 |
94.3 |
111 |
|
|
高：H |
36 |
40.5 |
46 |
70.5 |
84 |
|
|
LL |
长：L |
132 |
130.5 |
155 |
215 |
275.6 |
|
宽：B |
36 |
57.5 |
69 |
94.3 |
111 |
|
|
高：H |
38 |
40.5 |
46 |
70.5 |
84 |
|
|
C |
长：L |
132 |
149 |
178 |
246.4 |
275.6 |
|
宽：B |
36 |
39 |
64 |
66 |
84 |
|
|
高：H |
38 |
40.5 |
46 |
68 |
83 |
